I. Core Processes and Key Stages in Plastic Mold Manufacturing

Design Phase

- Product Analysis: For components like insulated cup lids or shells, key structural features (threads, snap-fits, sealing surfaces), wall thickness uniformity, and draft angles (recommended ≥1°) must be defined.

- Parting Line Design: Threaded areas in cup lids require side-core pulling mechanisms, http://www.zhanyict.com/en/ProductsDetail-VB-10424.htmlwhile parting lines on shells should avoid visible surfaces (e.g., logo areas).

- Mold Flow Analysis: Software like Moldflow simulates resin flow to predict shrinkage and weld line locations (Failure case: A cup lid leaked due to weak sealing from unanalyzed weld lines).

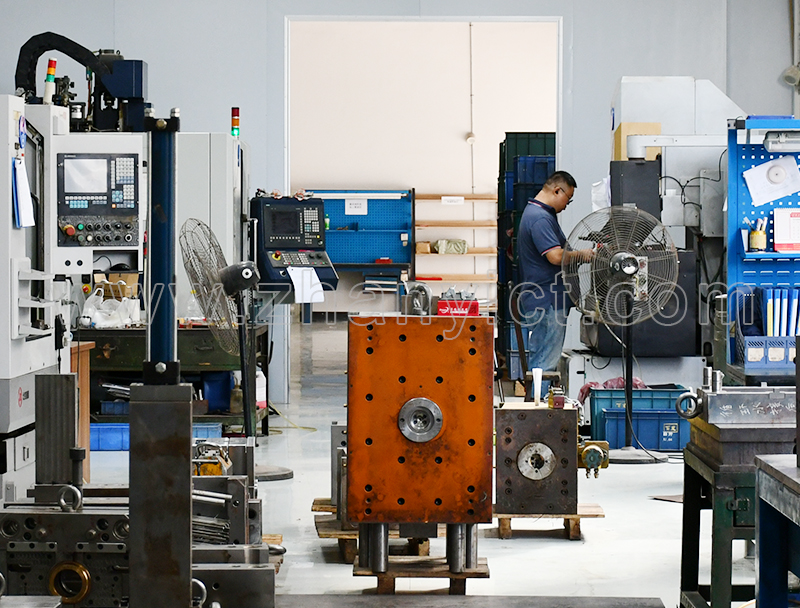

Manufacturing & Machining

- Material Selection: High-gloss shells require S136 mirror-polish steel (HRC 48-52), while standard parts can use P20 steel.

- Precision Machining: Threaded cores need slow wire-cutting (±0.005mm accuracy), http://www.zhanyict.com/en/ProductsDetail-VB-10424.htmland cavities require mirror polishing (Ra ≤ 0.02μm).

- Cooling System: Conformal cooling channels in lid molds cut cycle times (Success case: A project boosted cooling efficiency by 30%, reducing cycle time from 25s to 18s).

Trial & Adjustment

- First Trial (T1): Focus on verifying smooth lid ejection and checking shell surfaces for shrinkage.

- Parameter Tuning: http://www.zhanyict.com/en/ProductsDetail-VB-10424.htmlAdjust holding pressure/time for PP/PC materials (Failure case: 2,000 PC shells were scrapped due to sink marks from insufficient holding pressure).

(To be continued in Parts 2–4...)
